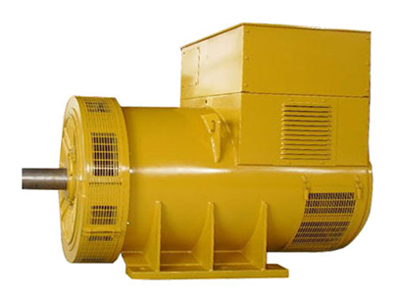

MP-4-454

  • MP-4-454

Description

一、the use of the environment
In the following circumstances, the generator can be rated for operation
(1)The altitude does not exceed 1000 meters.
(2)The cooling air temperature (-15 to 40 DEG C)
(3)The relative humidity of not more than 90%

二、product features
(1)A reliable automatic voltage regulating exciter system and, optionally, a permanent magnet generator system and can provide a constant excitation in a variety of situations.
(2)It is easy with the grid or other generators in parallel.
(3)The balancing of the rotor, with sealed ball bearings, bearings with single and double bearing two structure.
(4)The simple installation, convenient maintenance: with easy access to terminals, rotating rectifier and coupling bolts.
(5)The multi specifications adaptor and single bearing coupling disc.
(6)It meets all the dominant land use standard.

  • Parameter
  • Model(mode)
    Revised
    Rated power(kva)400v
    1500rpm/50HZ
    Rated power(kw)400v
    1500rpm/50HZ
    Rated power(kva)440v
    1800rpm/60HZ
    Rated power(kw)440v
    1800rpm/60HZ
    MP-4-454C 1500 1240 1770 1416
    MP-4-454D 1688 1350 2050 1640
    MP-4-454E 1875 1500 2250 1800
    MP-4-454F 2000 1600 2500 2000
    MP-4-454G 2250 1800 2750 2200
    MP-4-454H 2500 2000 3000 2400
