Description

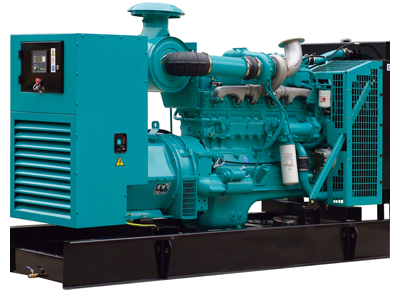

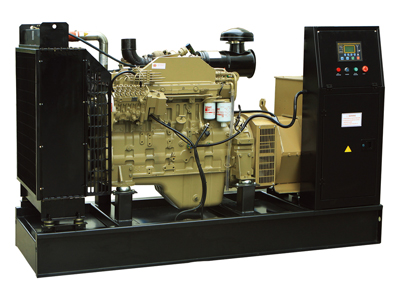

CUMINS diesel gensets use the CUMINS engine. CUMINS company is established in 1919 which headquarter is located at Columbus, Indiana state in America. CUMINS company has more than 680 distributors and 5000 service networks in 137 countries all over the world. As the biggest foreign investor in the filed of generators, CUMINS has some subsidiary companies which shall according to the CUMINS quality standard to produce in China. Such as Chongqing CUMINS generator Co.,Ltd (Produce M, N and K series diesel generator) and Dongfeng CUMINS generator Co.,Ltd (Produce B, C and L series diesel generator). The service network of CUMINS can provide the most convenient service assurance across the country.

Parameter

Model	Prime power		Engine model	No.of cyls	Bore/stroke	Fuel Cons.	Dimension	Weight(kg)
Model	KW	KVA	Engine model	No.of cyls	(mm)	(g/kwh)	(LWH) (mm)	Weight(kg)
GF2-15C	15	18.75	4B3.9-G1	4	102/120	209	16007201200	900
GF2-15C	15	18.75	4B3.9-G2	4	102/120	209	17007201200	900
GF2-20C	20	25	4B3.9-G2	4	102/120	209	17007201200	900
GF2-24C	24	30	4B3.9-G2	4	102/120	209	17007201200	900
GF2-30C	30	37.5	4BT3.9-G1	4	102/120	209	18007201200	920
GF2-30C	30	37.5	4BT3.9-G2	4	102/120	210	18007201200	920
GF2-40C	40	50	4BTA3.9-G2	4	102/120	210	18007201200	920
GF2-50C	50	62.5	4BTA3.9-G2	4	102/120	206	18007201200	920
GF2-64C	64	80	6BT5.9-G2	6	102/120	206	22008001300	1180
GF2-75C	75	93.7	6BT5.9-G2	6	102/120	206	22008001300	1180
GF2-90C	90	112.5	6BT5.9-G2	6	102/120	207	22008001300	1180
GF2-100C	100	125	6BTA5.9-G2	6	102/120	206	22508301350	1200
GF2-120C	120	150	6BTAA5.9-G2	6	102/120	209	22508301350	1350
GF2-150C	150	187.5	6CTA8.3-G2	6	114/135	209	25008601350	2200
GF2-160C	160	200	6CTA8.3-G2	6	114/135	209	26008801500	2500
GF2-180C	180	225	6CTAA8.3-G2	6	114/135	209	26008801500	2500
GF2-200C	200	250	6LTAA8.9-G2	6	114/144	209	26009001500	2500
GF2-200C	200	250	NT855-GA	6	140/152	206	30009801760	2600
GF2-220C	220	275	MTA11-G2A	6	125/147	207	300011001650	2650
GF2-220C	220	275	NTA855-G1	6	140/152	207	30009801760	2600
GF2-250C	250	312.5	NTA855-G1A	6	140/152	207	31009801760	2900
GF2-250C	250	312.5	MTAA11-G3	6	140/147	210	32009801760	2650
GF2-300C	300	375	NTA855-G2A	6	140/152	206	32009801760	3100
GF2-320C	320	400	NTA855-G4	6	140/152	210	32009801760	3100
GF2-350C	350	437.5	KTA19-G2	6	159/159	210	330012501970	3300
GF2-360C	360	450	NTAA855-G7A	6	140/152	204	340012501970	3250
GF2-400C	400	500	KTA19-G3	6	159/159	203.8	340012501970	3500
GF2-450C	450	562.5	KTA19-G4	6	159/159	203.8	340012501970	3650
GF2-500C	500	625	KTAA19-G5	6	159/159	206	375019602360	4000
GF2-500C	500	625	KTAA19-G6A	6	159/159	203.8	340012501970	3650
GF2-550C	550	687.5	QSK19-G3	6	159/159	203.8	350013001900	3700
GF2-550C	550	687.5	KTAA19-G7	6	159/159	206	375019602360	4500
GF2-560C	560	700	KT38-G	12	159/159	213	430017002360	8300
GF2-600C	600	750	KTA38-G2	12	159/159	206	350019602360	4200
GF2-750C	750	937.5	KTA38-G2B	12	159/159	210	450017002450	8700
GF2-800C	800	1000	KTA38-G2A	12	159/159	210	450017002450	8700
GF2-900C	900	1125	KTA38-G5	12	159/159	201	450019002450	9350
GF2-950C	950	1187.5	KTA38-G9	12	159/159	201	450019002450	9500
GF2-1000C	1000	1250	KTA38-G9	12	159/159	201	450019002450	9600
GF2-1100C	1100	1375	KTA50-G3	16	159/159	202	500020002450	9800
GF2-1200C	1200	1500	KTA50-G8	16	159/159	205	560020002450	10700
GF2-1300C	1300	1625	KTA50-G8	16	159/159	205	560020002450	10700
GF2-1500C	1500	1875	QXK60-G3	16	159/190	191	550022002500	13000
GF2-1800C	1800	2250	QXK60-G4	16	159/190	193	580023002600	15000
