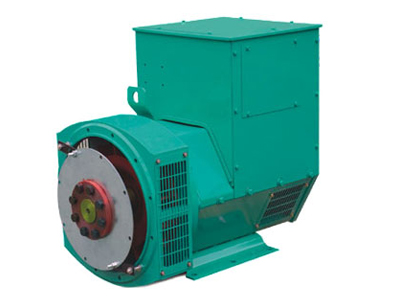

MP-4-274

  • MP-4-274

Description

一、the use of the environment
In the following circumstances, the generator can be rated for operation
(1)The altitude does not exceed 1000 meters.
(2)The cooling air temperature (-15 to 40 DEG C)
(3)The relative humidity of not more than 90%

二、product features
(1)A reliable automatic voltage regulating exciter system and, optionally, a permanent magnet generator system and can provide a constant excitation in a variety of situations.
(2)It is easy with the grid or other generators in parallel.
(3)The balancing of the rotor, with sealed ball bearings, bearings with single and double bearing two structure.
(4)The simple installation, convenient maintenance: with easy access to terminals, rotating rectifier and coupling bolts.
(5)The multi specifications adaptor and single bearing coupling disc.
(6)It meets all the dominant land use standard.



  • Parameter
  • Model(mode)
    Revised
    Rated power(kva)400v
    1500rpm/50HZ
    Rated power(kw)400v
    1500rpm/50HZ
    Rated power(kva)440v
    1800rpm/60HZ
    Rated power(kw)440v
    1800rpm/60HZ
    MP-4-274A 100 80 118 94
    MP-4-274B 112.5 90 132.8 106.2
    MP-4-274C 125 100 150.0 120
    MP-4-274D 140 112 168 134
    MP-4-274E 150 120 180 144
    MP-4-274F 160 128 190 152
    MP-4-274G 187.5 150 225 180
    MP-4-274H 200 160 245 196
    MP-4-274J 225 180 270 216
    MP-4-274K 250 200 294 235
